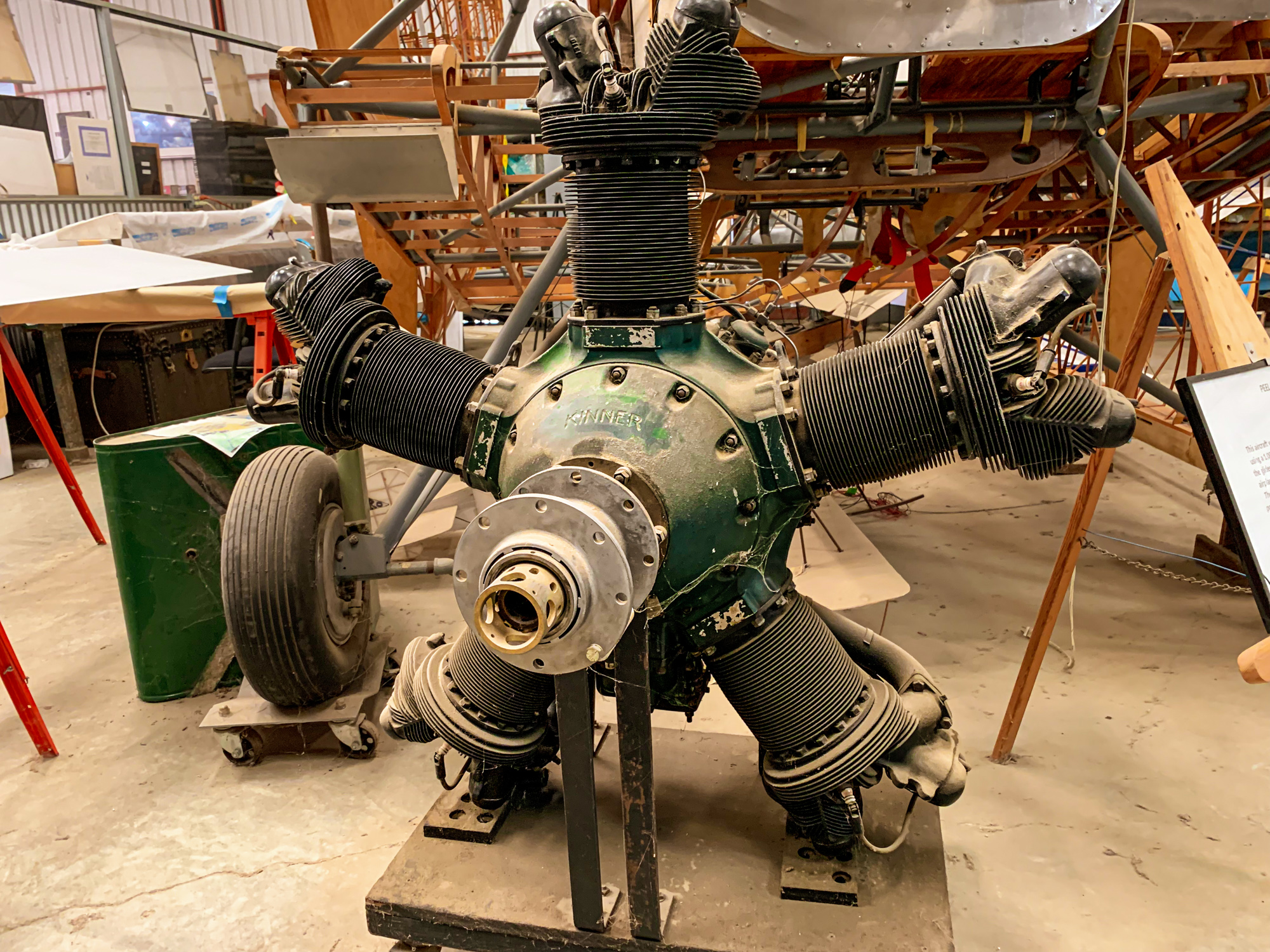

The Kinner R-5 is an American five cylinder radial engine used for light general and sport aircraft of the 1930s. The R-5 was a development of the earlier Kinner B-5, with slightly greater power and dimensions. The main change was the increase in cylinder bore from 117 mm (4.625 in) to 127 mm (5 in) and an increase in piston stroke from 133.3 mm (5.25 in) to 139.7 mm (5.5 in). This led to a corresponding increase in displacement from 7.2 liters (441 cu in) to 8.8 liters (540 cu in). The R-5 was a rough running but reliable engine. Thousands of the R-5 and its derivatives were produced, powering many World War II trainer aircraft. Its military designation was R-540.
| Engine Name | Kinner R-5 |
|---|---|
| Manufactured by | Kinner Airplane & Motor Corporation |
| Cylinder Configuration | radial |
| Number of Cylinders | 5 |
| Bore (inches) | 5 |
| Stroke (inches) | 5.5 |
| Displacement (cubic inches) | 540 |
| Horsepower | 160hp @ 1850 rpm |
| Compression Ratio | 5.5:1 |
| Dry Weight (lb) | 330 |
Source of information: Wikipedia contributors. (2021, February 25). Kinner R-5. In Wikipedia, The Free Encyclopedia. Retrieved 23:30, November 1, 2021, from https://en.wikipedia.org/w/index.php?title=Kinner_R-5&oldid=1008941106
